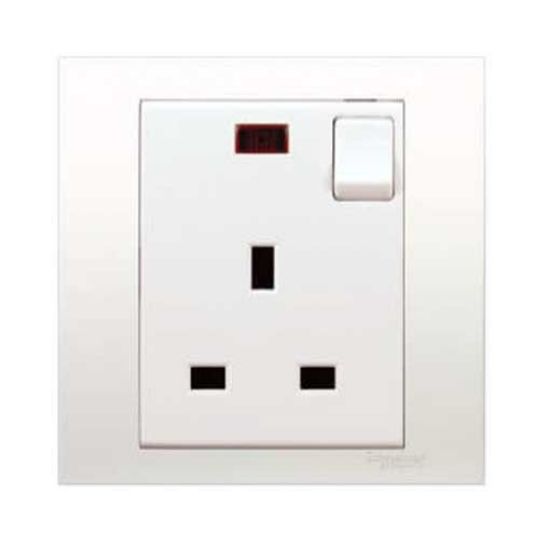

Schneider Switched Socket with Neon 13A 1 Gang

Type: Switched Socket with Neon 13A 250VAC 1 Gang
Model: KB15N
Origin:Malaysia
Werranty: 10 Years
Condition:: New
Brand: Schneider

Vendor: Aldiyaa Tradie & Industry Co .Ltd

Specifications:

Main
range	Vivace
product or component type	Socket-outlet with switch
device short name	KB15
device presentation	Complete mechanism

Complementary
pilot light	Red neon indicator
outlet poles configuration	2P + E
number of gangs	1 gang
Colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	13 A at 250 V AC, resistive
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	Pillar terminal
terminal identifier	N L Earth
tightening torque	0.4 N.m
clamping connection capacity	2 x 4 mm² 3 x 2.5 mm²
width	87 mm
height	87 mm

For more details and catalog download,click the link below:

https://www.se.com/ww/en/product/KB15N/13a-250v-1-gang-switched-socket-with-neon/
