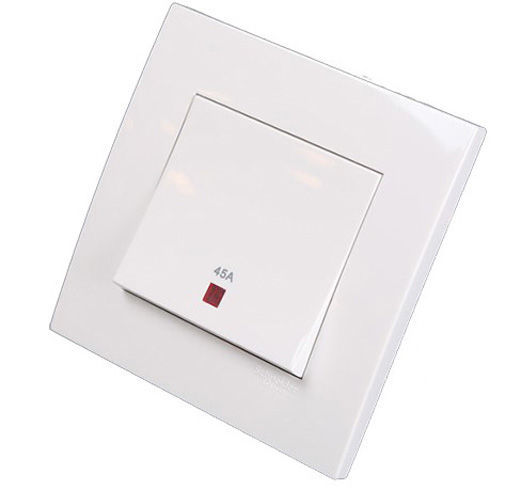

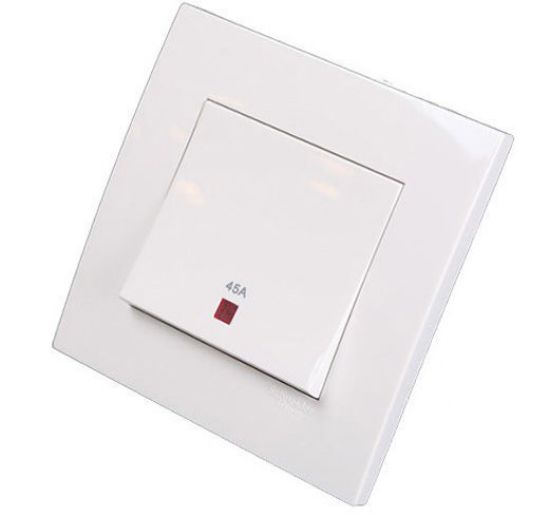

Schneider Double Pole Switch with Neon 45A KB31DR45N

Type: Schneider Double Pole Switch with Neon 45A 250VAC
Model: KB31DR45N
Origin:Malaysia
Warranty: 10 Years
Condition:: New
Brand: Schneider

Vendor: Aldiyaa Tradie & Industry Co .Ltd

Specifications:

Main
range	Vivace
product or component type	Switch
device short name	KB31
device presentation	Complete mechanism

Complementary
switch function	Double 1-way
actuator	Rocker
pilot light	Neon indicator lamp
number of gangs	2 gangs
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	47 mm
rated current	45 A at 250 V AC, inductive 45 A at 250 V AC, resistive
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
tightening torque	0.4 N.m
clamping connection capacity	16 mm²
width	86 mm
height	86 mm

For more details and catalog download, click the link below:

https://www.se.com/ae/en/product/KB31DR45N/45a-250v-double-pole-switch-with-neon/

$10.15

$8.50

increase decrease

Overview
Contact Us

Specifications:

Main
range	Vivace
product or component type	Switch
device short name	KB31
device presentation	Complete mechanism

Complementary
switch function	Double 1-way
actuator	Rocker
pilot light	Neon indicator lamp
number of gangs	2 gangs
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	47 mm
rated current	45 A at 250 V AC, inductive 45 A at 250 V AC, resistive
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
tightening torque	0.4 N.m
clamping connection capacity	16 mm²
width	86 mm
height	86 mm

For more details and catalog download, click the link below:

https://www.se.com/ae/en/product/KB31DR45N/45a-250v-double-pole-switch-with-neon/
