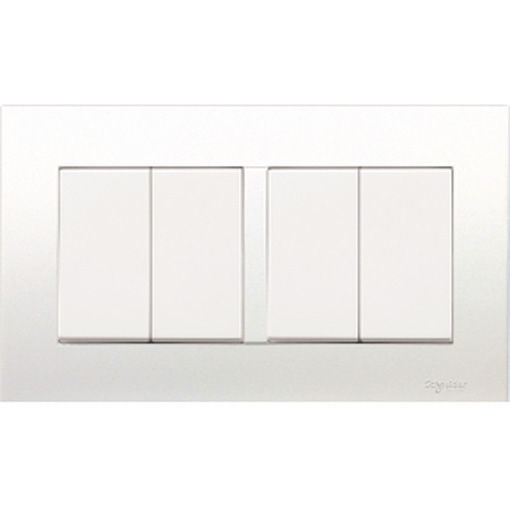

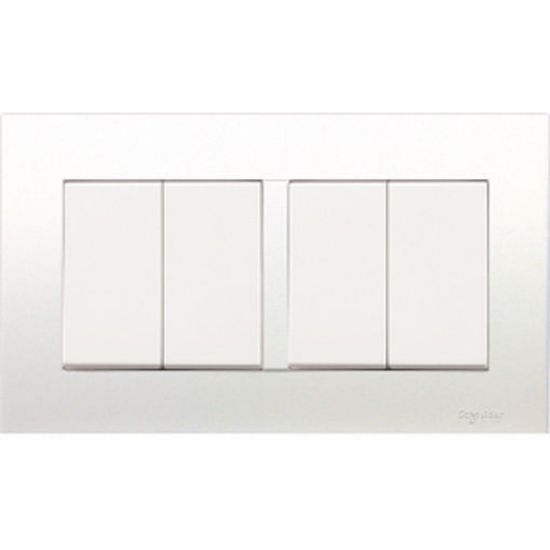

Schneider 4Gang 2 Way Switch KB34

Type: Schneider 4Gang 2 Way Switch 16A 250VAC
Model: KB34
Origin:Malaysia
Warranty: 10 Years
Condition:: New

Specifications:

Complementary
switch function	2-way
actuator	Rocker
number of gangs	4 gangs
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Nylon: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	120.6 mm
embedding depth	35 mm
rated current	16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L1 COM L2
tightening torque	0.4 N.m
clamping connection capacity	<= 2.5 mm²
width	146 mm
height	86 mm

For more details and catalog download, click the link below:

$8.82

$6.85

increase decrease

Availability: In stock

Specifications:

Complementary
switch function	2-way
actuator	Rocker
number of gangs	4 gangs
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Nylon: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	120.6 mm
embedding depth	35 mm
rated current	16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L1 COM L2
tightening torque	0.4 N.m
clamping connection capacity	<= 2.5 mm²
width	146 mm
height	86 mm

For more details and catalog download, click the link below:
