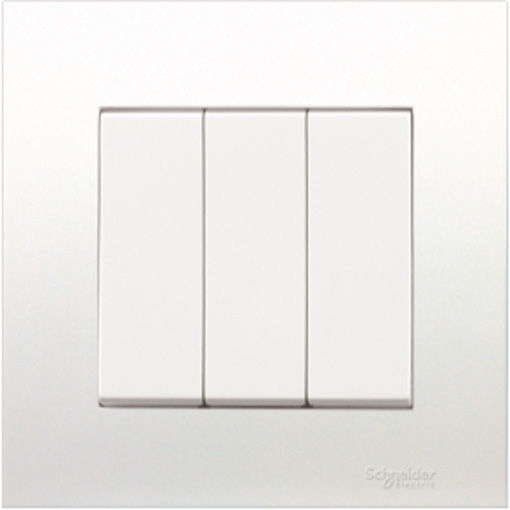

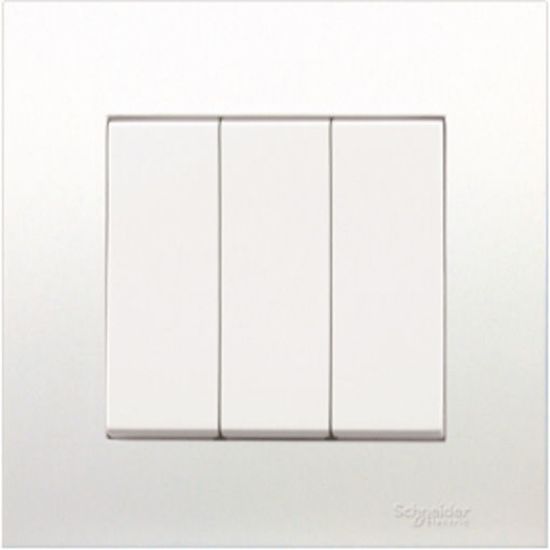

Schneider 3Gang 1Way Switch 16A 250V

Type: Schneider 3Gang 1Way Switch 250VAC 16A
Model: KB33/1
Origin:Malaysia
Werranty: 10 Years
Condition:: New
Brand: Schneider

Vendor: Aldiyaa Tradie & Industry Co .Ltd

Specifications:

Main
range	Vivace
product or component type	Switch
device short name	KB33
device application	Lighting
device presentation	Complete mechanism

Complementary
switch function	1-way
actuator	Rocker
number of gangs	3 gangs
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L1 L2 COM
tightening torque	0.4 N.m
clamping connection capacity	2.5 mm²
width	87 mm
height	87 mm

For more details and catalog download, click the link below:

https://www.se.com/my/en/product/KB33%252F1/vivace---16ax-250v-3gang-1way-switch---white/

$4.13

$3.45

increase decrease

Overview
Reviews
Contact Us

Specifications:

Main
range	Vivace
product or component type	Switch
device short name	KB33
device application	Lighting
device presentation	Complete mechanism

Complementary
switch function	1-way
actuator	Rocker
number of gangs	3 gangs
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L1 L2 COM
tightening torque	0.4 N.m
clamping connection capacity	2.5 mm²
width	87 mm
height	87 mm

For more details and catalog download, click the link below:

https://www.se.com/my/en/product/KB33%252F1/vivace---16ax-250v-3gang-1way-switch---white/
