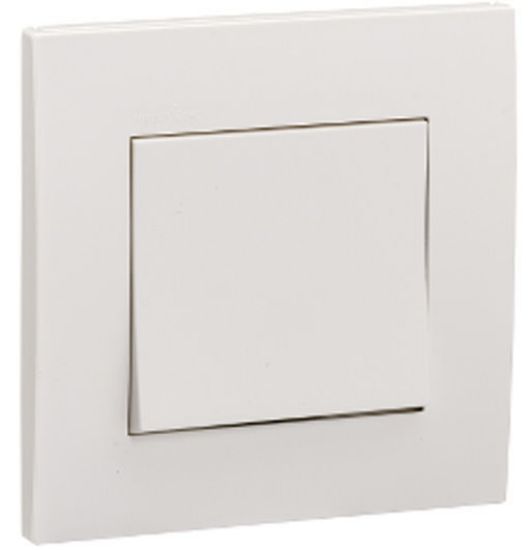

Schneider 1Gang 2Way Switch 16A 250V

Type: Schneider 1Gang 2Way Switch 250VAC 16A
Model: KB31
Origin:Malaysia
Warranty: 10 Years
Condition:: New
Brand: Schneider

Specifications:

Complementary
switch function	2-way
actuator	Rocker
number of gangs	1 gang
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L2 L1 COM
tightening torque	0.4 N.m
clamping connection capacity	2.5 mm²
width	87 mm
height	87 mm

For more details and catalog download, click the link below:

$2.40

$2.10

increase decrease

Specifications:

Complementary
switch function	2-way
actuator	Rocker
number of gangs	1 gang
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L2 L1 COM
tightening torque	0.4 N.m
clamping connection capacity	2.5 mm²
width	87 mm
height	87 mm

For more details and catalog download, click the link below:
