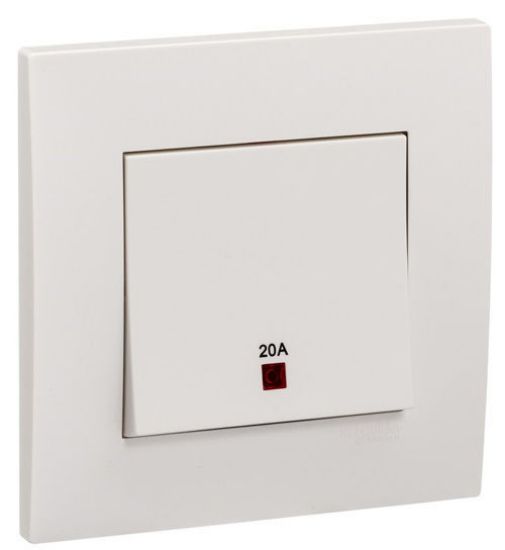

Schneider 1 Gang Double Pole Switch 20A KB31D20NE

Type: Schneider 1 Gang Double Pole Switch with Neon and Earth 20A 250VAC
Model: KB31D20NE
Origin:Malaysia
Warranty: 10 Years
Condition:: New
Brand: Schneider

Vendor: Aldiyaa Tradie & Industry Co .Ltd

Specifications:

Main
range	Vivace
product or component type	Switch
device short name	KB31
device presentation	Complete mechanism

Complementary
switch function	Double 1-way with earth
actuator	Rocker
pilot light	Neon indicator lamp
number of gangs	1 gang
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	20 A at 250 V AC, inductive
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L2 N2 N1 L1
tightening torque	0.4 N.m
clamping connection capacity	2.5 mm² 4 mm²
width	87 mm
height	87 mm

For more details and catalog download, click the link below:

https://www.se.com/ww/en/product/KB31D20NE/20a-250v-1-gang-double-pole-switch-with-neon-and-earth/

$4.99

This product has a minimum quantity of 45

increase decrease

Overview
Reviews
Contact Us

Specifications:

Main
range	Vivace
product or component type	Switch
device short name	KB31
device presentation	Complete mechanism

Complementary
switch function	Double 1-way with earth
actuator	Rocker
pilot light	Neon indicator lamp
number of gangs	1 gang
colour tint	White
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	20 A at 250 V AC, inductive
[Ue] rated operational voltage	250 V AC
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	pillar terminal
terminal identifier	L2 N2 N1 L1
tightening torque	0.4 N.m
clamping connection capacity	2.5 mm² 4 mm²
width	87 mm
height	87 mm

For more details and catalog download, click the link below:

https://www.se.com/ww/en/product/KB31D20NE/20a-250v-1-gang-double-pole-switch-with-neon-and-earth/
