Basic Info.
Function
Fiber Optic Network Huawei
Power Adapter
EU, Us, Au, UK
Application
FTTH FTTB FTTX Network
Origin
Guangdong, China (Mainland)
Product Description

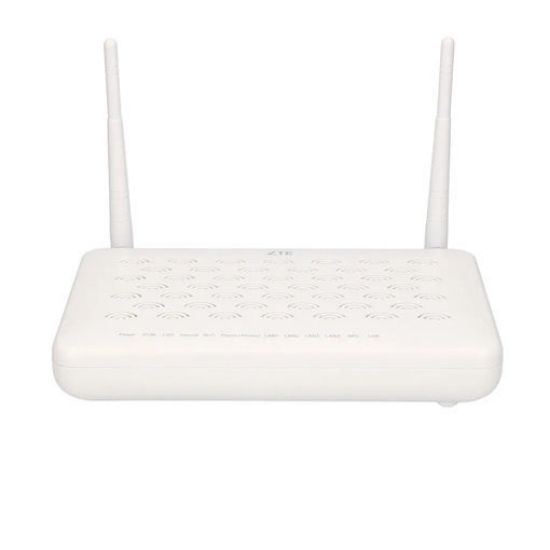

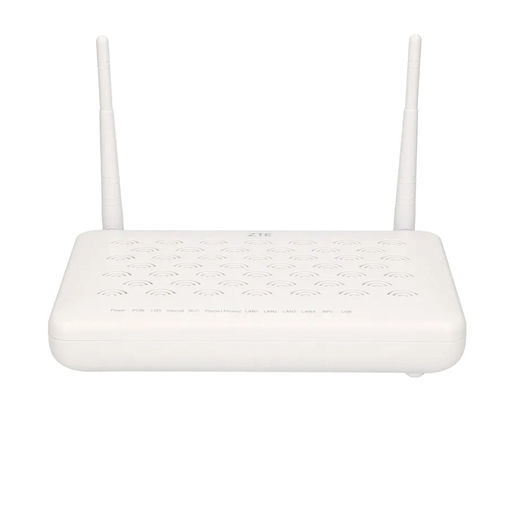

1GE+3FE+1TEL+WIFI ONT FTTH FTTX Modem ZTE F660 V8.0 GPON IPTV ONU English Firmware
The F660 V8.0 ONU provides one ports, 1GE and 3FE auto-adapting Ethernet ports, one USB port, and one Wi-Fi port. F660 V8.0 ONU mainly apply to FTTH/FTTB/FTTX solution with perfect combination of high quality and high speed. It also can compatible with Internet, VOIP and video service. Choosing BT-PON, you will believe that is a good choice.
Configuration:
| Model No. | Enternet Ports | Voice | Router (PPPoE) | Wifi | Firmware Language |
| ZXA F660 | 1GE+3FE | 1pots | yes | yes | English |
| Warranty: 1 year | Adaptor: EU, AU, AM,UK, etc | Noted: Chinese Manual |
Interface Function:
1.Optical port (line terminal):
*1 * GPON interface (SC/UPC)
2.User network interface:
*4 * 10/100/1000Base_T interfaces
*Auto MDI/MDIX
*1 * POTS (VoIP) interfaces
*1 * WiFi interface: IEEE 802.11b/g/n
*1 * USB interfaces
Transmission Rate:
1.Line terminal:
*2.488Gbps downstream and 1.244Gbps upstream
2.User side interface:
*10/100/1000Mbps auto-negotiation
3.WiFi interface:
*IEEE 802.11b/g/n
High Reliability:
The full-service access capability featuring high bandwidth, high performance, high reliability, and easy operation, administration and maintenance (OMCI/TR-069) meets the continuously changing requirements of the customer, protects the legacy investment, and enhances the value of the operator's network.
The highly reliable heat dissipation design guarantees its stable operation.
The dual image ensures uninterrupted services during software downloading or upgrading, thereby enhancing software reliability
The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the Phone interfaces, and 1.5 kV for the Ethernet ports.
