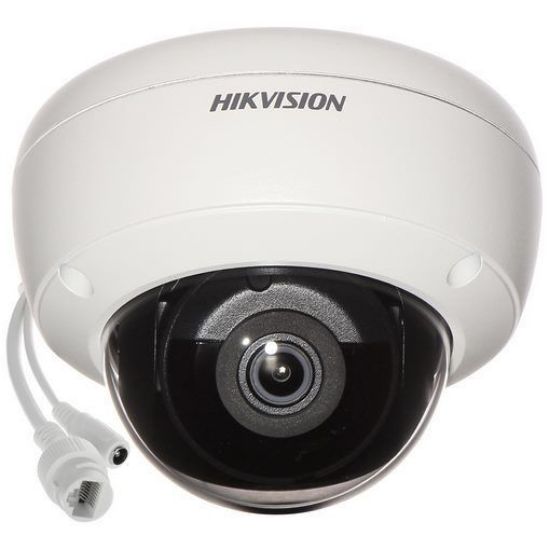

DS-2CD2146G1-I
4 MP IR Fixed Dome Network Camera
• Max. 2688 × 1520 @ 30fps
• 2.8 mm/4 mm/6 mm fixed lens
• H.265, H.264
• 120dB WDR
• False alarm filter by target classification
• Powered by Darkfighter
• 12 VDC & PoE (802.3af, class 3)
• IR range: Up to 30 m
• Support on-board storage, up to 128 GB
• IP67 (If the camera is installed outdoor, the bracket DS-1253ZJ-* should be used together with other pendant mounting bracket or wall mounting bracket to reduce IR reflective in the rainy day), IK10
• BLC/3D DNR/ROI
• Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
Specifications:
| Camera |
|---|
| Image Sensor: | | 1/2.7” Progressive Scan CMOS |
| Signal System: | | PAL/NTSC |
| Min. Illumination: | | Color: 0.007 Lux |
| Wide Dynamic Range: | | 120 dB |
| Digital noise reduction: | | 3D DNR |
| Focus: | | Fixed |
| Image |
|---|
| Max. Image Resolution: | | 2688 × 1520 |
| System Compatibility: | | ONVIF (Profile S, Profile G),ISAPI |
| Network |
|---|
| Network Storage: | | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Interface |
|---|
| Communication Interface: | | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage: | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Smart Feature-set |
|---|
| Behavior Analysis: | | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification |
| Line Crossing Detection: | | Cross a pre-defined virtual line |
